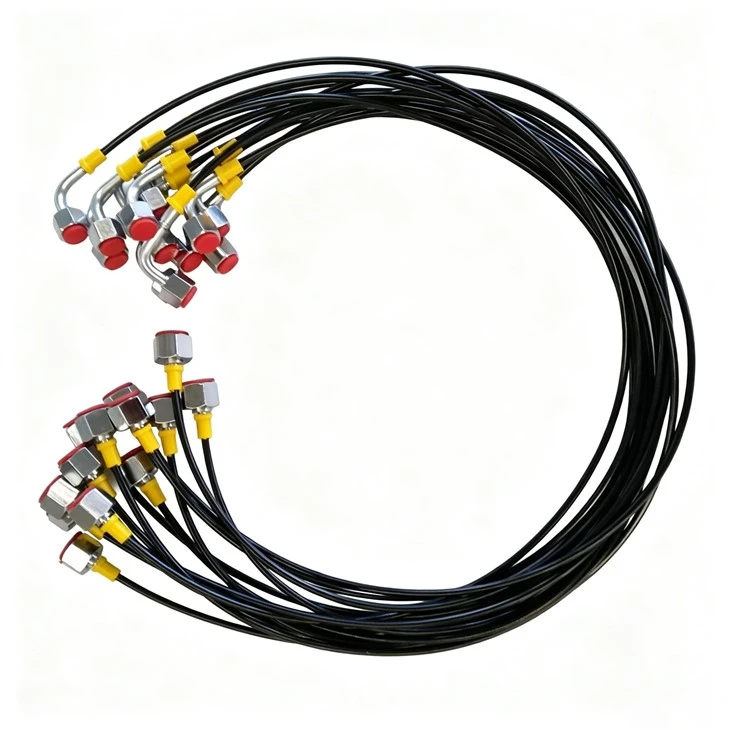

Pressure Measurement Hose
Pressure measurement hose Constructed with nylon inner tube, fiber-braided reinforcement and polyurethane outer cover. Small bore (2-3 mm), compact-sized, lightweight and highly flexible with small bending radius for easy installation. Products Description Technical Parameters
Send Inquiry
Product Introduction
Pressure measurement hose

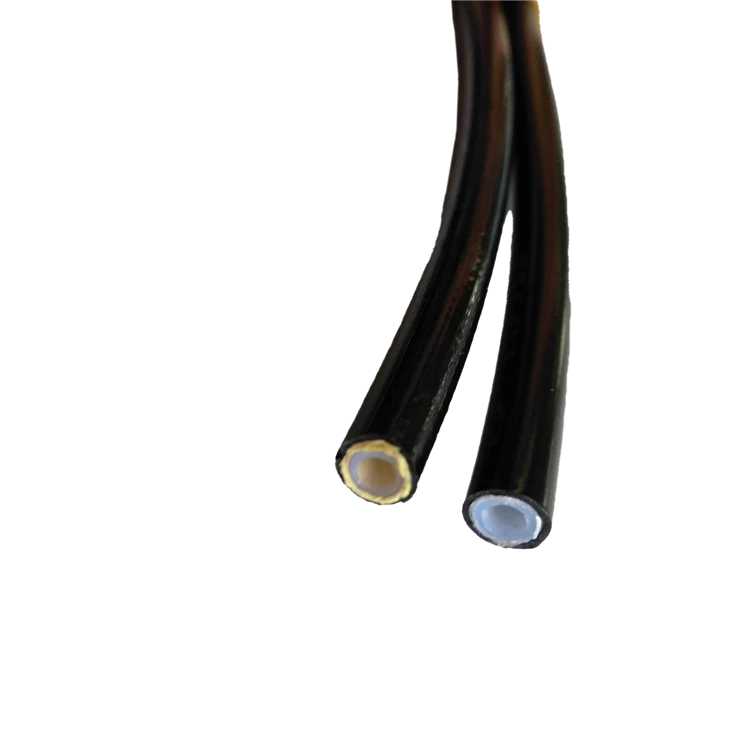

Constructed with nylon inner tube, fiber-braided reinforcement and polyurethane outer cover. Small bore (2-3 mm), compact-sized, lightweight and highly flexible with small bending radius for easy installation.
Products Description
Technical Parameters
| Inner liner | nylon |
| Reinforcement layer | High-strength Industrial Fiber |
| Outer cover | Polyurethane |
| Temperature range | -40℃~120℃ |
| Product features | Oil-resistant, acid-alkali resistant,High-pressure resistant |
| Scope of Application | Pressure-measuring tubes for various equipment |
| specification | Inner radius (mm) |
Outer diameter(mm) | Allowable working pressure(Mpa) | minimum burst pressure (Mpa) | Min.bending radius(mm) |
| XPA-2 | 2 | 5 | 64 | 160 | 30 |
| XPA-2.5 | 2.5 | 5.5 | 64 | 160 | 35 |
| XPA-3 | 3 | 6 | 64 | 160 | 45 |
| XPA-4 | 4 | 7 | 100 | 260 | 50 |
