Product Introduction

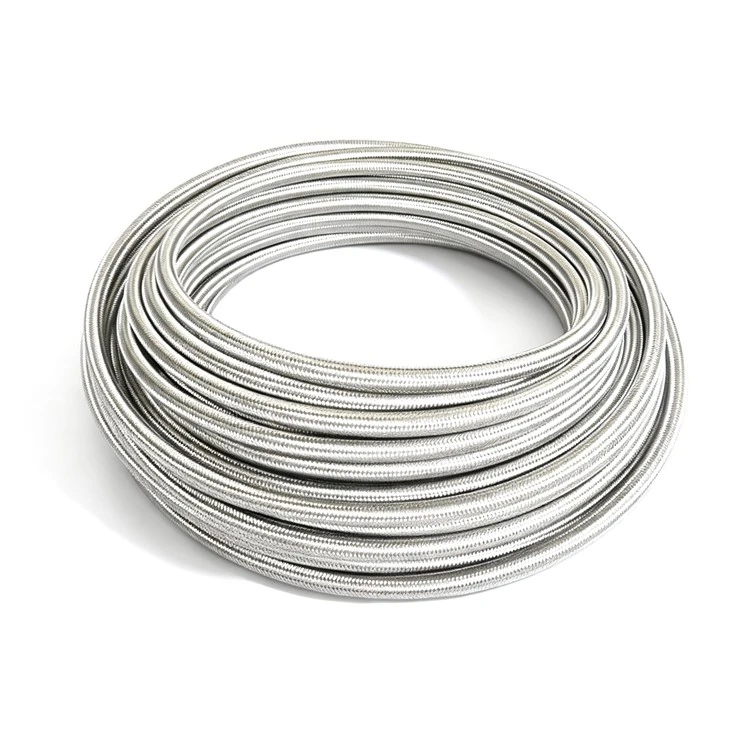

High-temperature resistant hose

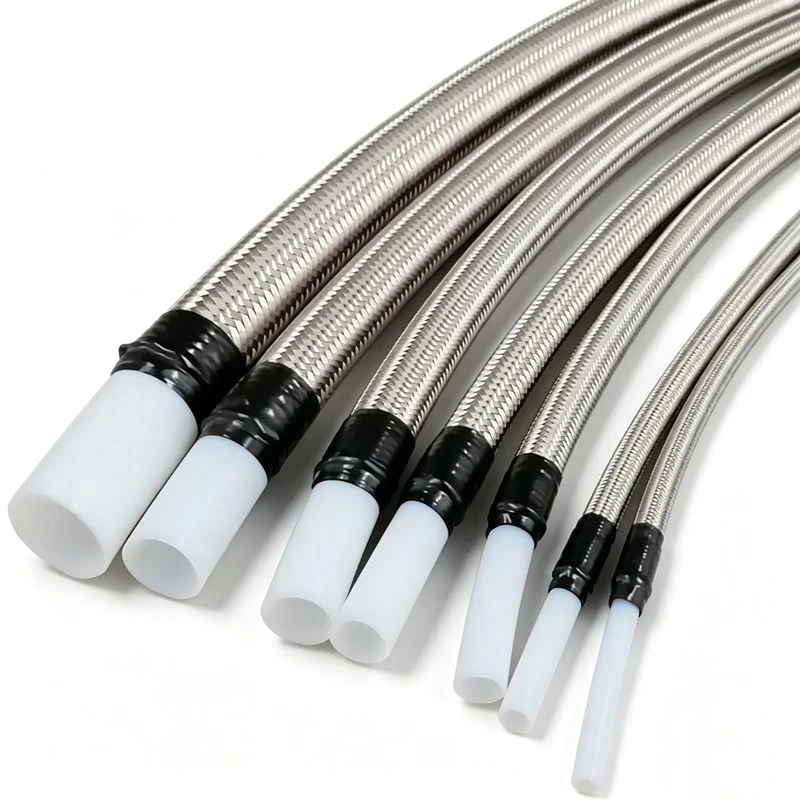

High-temperature series hoses adopt PTFE inner liner and stainless‑steel braided reinforcement. They feature high-low temperature resistance, strong acid and alkali corrosion resistance, smooth non-fouling inner wall, good pressure and impulse resistance and fine flexibility, suitable for chemical, steam, food-pharmaceutical and high-temperature fluid transfer.
Products Description
Technical Parameters
| Inner liner | PTFE |
| Reinforcement layer | Special-purpose High-tensile Stainless Steel Wire |
| Temperature range | -60℃~260℃ |
| Product features | Corrosion-resistant , High-temperature resistant |
| Scope of Application | Equipment with high working and medium temperature |
| Specification | Inner radius (mm) |
Outer diameter(mm) | Weaving work pressure(Bar) | Minimum bending radius(mm) | Inner tube wall thickness(mm) | Burst pressure(Bar) |
| 1/8 | 3.5 | 6.6 | 320 | 51 | 1 | 1007 |
| 3/16 | 4.8 | 8 | 247 | 75 | 0.85 | 740 |
| 1/4 | 6.4 | 9.2 | 214 | 81 | 0.85 | 666 |
| 5/16 | 8 | 11 | 191 | 92 | 0.85 | 598 |
| 3/8 | 9.7 | 12.8 | 188 | 131 | 0.85 | 567 |
| 1/2 | 12.7 | 15.9 | 156 | 182 | 1 | 470 |
| 5/8 | 16 | 19.2 | 129 | 211 | 1 | 389 |
| 3/4 | 19 | 22.7 | 79 | 338 | 1.2 | 274 |
| 7/8 | 22.2 | 26 | 61 | 421 | 1.2 | 194 |
| 1 | 25 | 29.3 | 40 | 539 | 1.5 | 156 |
