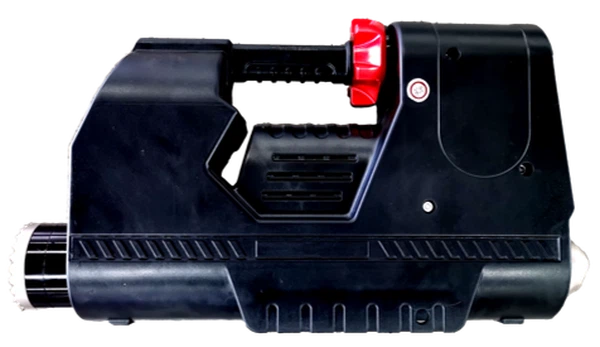

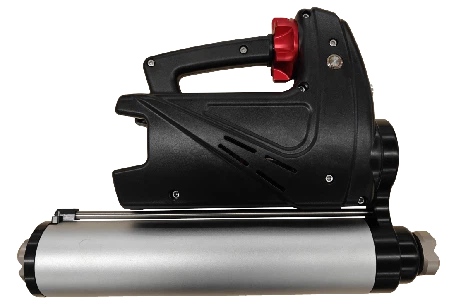

Battery Ram
The Battery ram is specially designed forrescue purposes.No need for externalpower supply, preferred by rescue team,the police, civil defense rescue vehicle. The product is mainly used for spread.ing, lifting, and maintaining the stabilityof heavy objects. Suitable for...
Send Inquiry
Product Introduction
Electric all-in-one load-bearing shoring equipment
The Battery ram is specially designed forrescue purposes.No need for externalpower supply, preferred by rescue team,the police, civil defense rescue vehicle.
The product is mainly used for spread.ing, lifting, and maintaining the stabilityof heavy objects. Suitable for firefighting,trafficearthquake, roadaccidents and other disasters rescueoperation.
Multiple strokes, high load
Multiple stroke options available, excellent load capacity, suitable for collapse shoring and vehicle stabilization.
Technical Parameters
| Model | CDD-D | CDD-A |
|
Lifting force:
|
Max. Lifting force plunger 1st:153.01KN
Max. Lifting force plunger 2ndt:61.17KN
|
Max. Lifting force plunger 1st:141.47KN
Max. Lifting force plunger 2ndt: NO
|
|
Weight without battery:
|
19.65kg
|
18.8kg
|
|
Waterproof without battery:
|
19.95kg
|
19.1kg
|
|
Battery weight:
|
5AH 0.9kg(non-waterproof)
5AH 0.9kg1.4kg(waterproof)
|
5AH 0.9kg(non-waterproof)
5AH 0.9kg1.4kg(waterproof)
|
|
Retracted length:
|
561mm
|
560mm
|
|
Extended length:
|
1353mm
|
932mm
|
|
Extended length:
|
Extended length 1st:973mm
Extended length 2ndt:1357mm
|
Extended length 1st:932mm
Extended length 2ndt:NO
|
|
Stroke plug:
|
Stroke 1st plug:412mm
Stroke 2ndt plug:380mm
|
Stroke 1st plug:372mm
Stroke 2ndt plug:NO
|
| Dimensions: | 561×124×398mm | 558×140×303mm |
